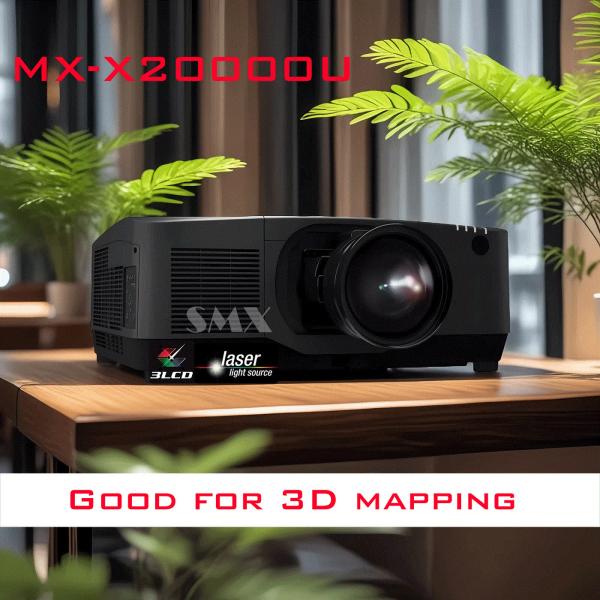

20,000-Lumen WUXGA Laser Projector for Outdoor 3D Mapping
Main Specification
| Model# | MX-X20000U |
| Brightness |
| | Brightness(Lumen) | 20,000 |
| Overall Spec |
| Panel | Display Panel | 3x1.0" |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
| Laser Lifetime | Normal mode | 20000hrs |
| ECO mode | 30000hrs |
Projection Lens
(STD) | Len Model | MX-EG12ZLM |
| Zoom/Focus | Motorized |
| Throw Ratio (16:10) | 1.24-2.01 @100inch |
| F | 1.8-2.24 |
| f | 27.7-44.3mm |
| Zoom Ratio | 1.62 |
| Screen size | 60-500 inch |
| Lens Shift V | ±65% |
| Lens Shift H | ±25% |
| CR | Contrast Ratio(Min) | 3,000,000:1 |
| Noise | Noise(dB) | Full:46db / Normal:44db / Eco1:43db / Eco2:42db |
| AR | Aspect Ratio | Native:16:10
Compatible: 4:3/16:9/normal/16:6 |
| Terminal(I/O port) |
| Input | VGA | *1 |
| HDMI 1.4(IN) | *2 |
| USB-A | *1 |
| USB-B | *1 (Display) |
| RJ45 | *1 (Display) |
| DVI-D | *1 |
| HD BaseT | *1 |
| Audio in(mini jack,3.5mm) | *1 (VGA/DVI-D share) |
| DMX512 | *1 |
| Output | HDMI 1.4(OUT) | *1 |
| Audio out (mini-jack,3.5mm) | *1 |
| Control | RS232C (Input) | *1 |
| RS232C (Output) | *1 |
| Wired Remote(IN) | *1 |
| Wired Remote(OUT) | *1 |
| Other Functions |
| Keystone | Keystone Correction | V: ±30°
H:±30°
Pincushion/Barrel Correction
6 Corner Geometry correction
Grid ImageTune correction |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-AMX Discovery | Yes |
| LAN Control-PJ Link | Yes |
| Others | 360° projection | 360° Install |
| Edge Blending | Yes |
| Adjustable brightness | Yes |
| Accessory |
| | Manual Languages | Chinese, English |
| Standard Accessories | Power cord (3m, Black), Remote control |
Flexible Lens Options for Custom Installations
The SMX MX-X20000U features motorized interchangeable lenses with a wide throw ratio range of 0.53:1 to 7.5:1, allowing for versatile installation options. Whether ceiling-mounted, floor-standing, or rear-projection, this projector adapts seamlessly to various venue sizes and projection distances, enabling precise image alignment and distortion-free visuals.
| Model# | MX-EG05ZLM | MX-EG06ZLM | MX-EG08ZLM | MX-EG12ZLM | MX-EG20ZL | OL-EG39ZLM |
| Image circle | Φ34.6 | Φ35.5 | Φ37.9 | Φ37.9 | Φ37.9 | Φ37.9 |
| Zoom/Focus | Motorized | Motorized | Motorized | Motorized | Motorized | Motorized |
| F# (Wide-Tele) | 1.85-2.20 | 1.84-2.25 | 1.80-2.24 | 1.80-2.24 | 1.84-2.58 | 1.85-2.42(TBD) |
| f(mm) | 12.0-14.6 | 14.4-19.1 | 19.0-27.6 | 27.7-44.3 | 43.8-86.0 | 86.8-163.5(TBD) |
| Throw Ratio (16:10) | 0.53-0.65 | 0.65-0.87 | 0.86-1.25 | 1.24-2.01 | 1.98-3.95 | 3.95-7.50(TBD) |
| Zoom Ratio | 1.23 | 1.34 | 1.45 | 1.62 | 1.99 | 1.90(TBD) |
| Lens shift | H | ±20% | ±20% | ±25% | ±25% | ±25% | ±25% |
| V | ±50% | ±55% | ±65% | ±65% | ±65% | ±65% |
| Screen Size | 60-500inch | 60-500inch | 60-500inch | 60-500inch | 60-500inch | 60-500inch |
Experience the power of professional-grade projection with the SMX MX-X20000U, a high-brightness 20,000-lumen WUXGA-resolution laser projector designed for demanding large-scale applications. Utilizing cutting-edge laser illumination technology, this projector offers exceptional brightness, stunning clarity, and unmatched reliability, making it the perfect choice for outdoor projections, dynamic stage performances, and intricate architectural mapping.
Key Features:
- 20,000 Lumens of Brightness: Ensures vibrant, vivid images even in high-ambient-light environments.
- WUXGA Resolution (1920 x 1200): Delivers sharp, detailed visuals for an immersive viewing experience.
- Advanced Laser Technology: Provides long-lasting performance, consistent color accuracy, and low maintenance.
- Robust Design: Built to endure the demands of professional environments and continuous operation.
Ideal Applications:
- 3D Projection Mapping: Transform buildings, landscapes, and structures into captivating visual canvases with large-scale immersive projections.
- Live Events & Concerts: Elevate stage productions with dynamic visuals that engage and captivate audiences.
- Museums & Exhibitions: Develop interactive and educational displays that enhance visitor engagement and learning experiences.
- Theme Parks & Entertainment Venues: Deliver unforgettable visual experiences with high-impact, high-resolution effects.
- Simulation & Training: Perfect for VR environments, flight simulators, and training simulations requiring ultra-sharp imagery.
